Monday, July 20, 2015

MSCA/MWA Framework - Custom Development and Extension - Part 2

Technical Overview of MSCA/MWA Framework Continues...

Event Listener Model

MWAEvent

Event object passed to the listener methods in the handlers at the field, page, or app level.
public class MWAEvent extends java.util.EventObject
Frequently used properties and their getters and setters inherited from EventObject

public Object getSource()
public String toString()

Stores action property (private java.lang.String m_action)

public java.lang.String getAction()

Stores session property (private oracle.apps.mwa.container.Session m_session)

public Session getSession()

MWAEvent Listeners:

Listeners are utilised for validations, dynamic rendering of the fields, update the values etc. Following are the key Listeners:

oracle.apps.mwa.eventmodel.MWAListener

Parent class for all MWA Listeners.
public interface MWAListener extends java.util.EventListener
Direct subinterfaces - MWAAppListener, MWAPageListener, MWAFieldListener
We don't implement this interface directly.

oracle.apps.mwa.eventmodel.MWAAppListener

Application Level Event Listener
public interface MWAAppListener extends MWAListener
Methods -

void appEntered(MWAEvent e) throws AbortHandlerException, InterruptedHandlerException, DefaultOnlyHandlerException
void appExited(MWAEvent e) throws AbortHandlerException, InterruptedHandlerException, DefaultOnlyHandlerException

This interface is& typically implemented by our custom application's menu item bean.

oracle.apps.mwa.eventmodel.MWAPageListener

Page Level Event Listener
public interface MWAPageListener extends MWAListener
Methods -

void pageEntered (MWAEvent e) throws AbortHandlerException, InterruptedHandlerException, DefaultOnlyHandlerException
void pageExited(MWAEvent e) throws AbortHandlerException, InterruptedHandlerException, DefaultOnlyHandlerException
void specialKeyPressed(MWAEvent e) throws AbortHandlerException, InterruptedHandlerException, DefaultOnlyHandlerException

Ex. Generating Barcodes, Navigating to Main menu etc.

This interface is typically implemented by our custom application's page bean.

oracle.apps.mwa.eventmodel.MWAFieldListener

Field Level Event Listener
public interface MWAFieldListener extends MWAListener
Methods -

void fieldEntered(MWAEvent e) throws AbortHandlerException, InterruptedHandlerException, DefaultOnlyHandlerException
void fieldExited(MWAEvent e) throws AbortHandlerException, InterruptedHandlerException, DefaultOnlyHandlerException

Probably most important class in terms of the custom code that we need to write in this.
This interface is typically implemented in a standalone class.
The standalone field listener class is instantiated and referenced inside page bean, where we associate it with every field on the page.
Field Listener will typically have a constructor where session is passed from page and stored in a class variable.
Following are few important code snippet typically used in this field listeners:

To get the source of the event:

String fieldName = ((FieldBean)mwaEvent.getSource()).getName();

To check if it is a submit event:

if (mwaEvent.getAction().equals("MWA_SUBMIT"))

To get the current page details

session.getCurrentPage();

To show message in status bar:

this.ses.setStatusMessage("Qty Should be > 0");
this.ses.setStatusMessage("Trx Successful");

To set next field for user entry:

session.setNextFieldName();

To refresh the screen:

session.setRefreshScreen();

To throw exceptions:

throw new AbortHandlerException("Qty Should be > 0");

To signal end of transaction

setNextPageName("|END_OF_TRANSACTION|")

Most of the above code is from session, we'll see session details in coming section.

Other Important Classes - MWA Session Classes

oracle.apps.mwa.container.Session

public class Session extends oracle.apps.mwa.container.BaseSession
BaseSession is base class for user session and telnet session.
Key methods inherited from BaseSession

public java.sql.Connection getConnection()
public java.sql.Connection getConnectionFromSession()
public void returnConnection()
public java.lang.String getCurrentPageName()

Key methods in Session class

public PageBean getCurrentPage()

Returns the current page bean in the page bean list

public void setStatusMessage(java.lang.String msg)

Displays the argument string on the status bar.

public java.lang.String getStatusMessage()
public void setRefreshScreen(boolean RefreshScreenFlag)

This method set the refresh screen variable Whenever developer change the UI property of the page, e.g. hidden, value, creation of new field, etc, he/she needs to call this method with parameter true so that server will know and refresh the screen

public boolean isRefreshScreen()
public FieldBean getFieldFromCurrentPage(java.lang.String fieldName)
public void setNextFieldName(java.lang.String fName)

To set the cursor to some other field.

public java.lang.String getNextFieldName()
public Logger getLogger()

Application Flow

Coding Hints:

A. Ctrl + X shortcut key for About This Page is a good start for customizing existing functionality.

B. We typically create following 4 files:

XXABCTransactFunction.java

public class XXABCTransactFunction extends MenuItemBean implements MWAAppListener
With following two lines in constructor:

setFirstPageName("xxabc.oracle.apps.xxabc.applpkg.module.server.XXABCTransactPage");
addListener(this);

It'll have appEntered() and appExited() methods.

XXABCTransactPage.java

public class XXABCTransactPage extends PageBean implements MWAPageListener
Typically it'll have following Member variables:

For all field beans
For session
For FieldListener for all fields

Constructor will initialize FieldListener bean (Explained Next)
Constructor will initialize all fields, associate field listener and add them to page hierarchy.
It'll have pageEntered(), pageExited() and specialKeyPressed() methods.
It'll have methods for business transactions typically calling PLSQL procedures.

XXABCTransactFListener.java

public class XXABCTransactFListener implements MWAFieldListener
Typically it'll have following Member variables:

session

Paramterized Constructor with session variable will initialize member session variable.
Rarely we need to write code in fieldEntered() method.
FieldExited() will have bulk of the coding based on current page and field exited:

String fieldName = ((FieldBean)mwaEvent.getSource()).getName();

To identify the field exited.

this.ses.getCurrentPage();

To identify the current page

For transaction logic, it'll have a call to the pageBean's transaction method.

XXABCFieldLOV.java

public class XXABCFieldLOV extends LOVFieldBean implements MWAFieldListener
Since LOVs are shared components, for easy of use/reuse we usually create them as separate Java files.
It'll have member variables, their getters and setters for the return values of the selected LOV record.
It'll have constructor will following api calls:

setName(), setRequired(), setPrompt(), setValidateFromLOV(), setlovStatement(), setInputParameterTypes(), setSubfieldPrompts(), setSubfieldDisplays(), addListener(this).

It'll have fieldEntered() method (usually empty).
It'll have fieldExited() method (usually we set all the return values from selected LOV record to member variables).

Sample Code for all Files:

Standard Oracle MWA code provides good insight in how to write code. If still any help is needed, please reach me.

Steps to test the code:

Deploy it on the server.
Restart the server.
Testing on desktop telnet client.
View the log for debugging.

Debugging:

Steps to enable logging are in document 338291.1

Log files are located in $INST_TOP/logs
Logging Levels are Fatal, Error, Warning, Debug and Trace.
All Log files start with telnet port number as prefix.

In java code following method is used to write log statement:

oracle.apps.inv.utilities.server.UtilFns.trace()

In java code to check if trace is enabled:

if (UtilFns.isTraceOn)

In PLSQL, following code will be used
Use Mirroring
Check Mobile Services are up and Runing:

ps -ef |grep mwa
./ $INST_TOP/admin/scripts/mwactl.sh status

Check MWA user sessions

netstat -a |grep <MWA PORT> | wc -l
netstat -an | grep <MWA PORT>

Find port Number of Mobile Services :

grep mwa $CONTEXT_FILE

Connect to Mobile Services :

telnet hostname.domainname portnumber(mobile application service port_number)

MWA Troubleshooting Tips for Release 12 (Doc ID 782162.1)

Reference and Further Reading:

Note 578667.1 - Customization of Oracle Mobile Supply Chain Applications and Oracle Warehouse Management System
Note 959087.1 - How To Download The MSCA/WMS JAVADOCS Files For Doing Customization?
Note 338291.1 - How to Enable WMS / MSCA Logging
Note 297992.1 - Advanced Barcode Strategies – Custom Scan Framework & profile option "MWA: Custom Scan"
For Multi-lingual Support and DFI (Data Field Identifier) - Integration with AK repository is needed.

Previous Read: MSCA/MWA Framework - Custom Development and Extension - Part 1
Previous Read: Oracle MSCA/MWA Framework - Introduction

MSCA/MWA Framework - Mobile Personalization

Mobile Personalization:

Mobile personalization enables you to customize Oracle Warehouse Management pages without making code changes. Personalization support is present in R12.1.X onwards. Personalization metadata is stored in database level similar to OAF personalization. Following are typical examples of personalizations:

Hide fields and buttons
Provide default field values
Copy the value of a field to another field
Set editable fields as read only
Set non-required fields as required.

Personalization Level:
Similar to OAF Personalization, Following are various levels of personalization for Mobile Pages:

Function
Responsibility
Organization (Inventory Org)
User

Personalization Support in Pages:

There are around 40 pages (No. of pages vary from release to release) that support personalization. Customers can raise request for new pages to allow personalization. Following are some example:

Assembly Completion by LPN
GME Mobile Backflush
GME Mobile Complete Product
GME Mobile Create Pending Lot
GME Mobile Issue Ingredients
Lot Attributes Page - PO Receipt
Mobile ASN Receipt
Mobile Alias Issue
Mobile Alias Receipt
Mobile Cycle Count
Mobile Inspect LPN
Mobile Item Inquiry
Mobile LPN Inquiry
Mobile LPN Ship
Mobile LPN Ship - Ship Confirm
Mobile Move Order Replenishment
Mobile Org Transfer
Mobile PO Receipt
Mobile PO Receipt Information
Mobile Physical Count
Mobile Pick Drop - Mobile WMS Drop Loaded LPNs
Mobile Pick Load - Mobile WMS Manual Picking
Mobile Replenish Kanban
Mobile Sub Transfer
Mobile WMS Inbound Manual Load
Mobile WMS Inbound Manual Load - Select Contents
Mobile WMS LPN Split
Mobile WMS Manual Picking
Mobile WMS Move Any LPN
Mobile WMS Move Any LPN (Select Item)
Mobile WMS Pack
Mobile WMS Unpack
Mobile WMS Update LPN

Pre-requisite and Setups needed:

WMS Setup should be completed
Set profile option "MWA: Enable Personalization" to Yes.
Set profile option "MWA: Cache Personalized Metadata" to No. If this profile option value is set to Yes, then bounce will be required after personalization. Setting the profile option to Yes, results in better performance for personalized pages.

Steps To Personalize:

Navigate to "Warehouse Manager > Setup > MWA Personalization Framework".
Select the mobile page/function.
Click Personalize
Edit the field to personalize

Update the Prompt/Default Value/Rendered/Read Only/Required etc properties.

Click on Activate/Deactivate Personalizations to activate/deactivate personalizations on that page.

DFF on Mobile Screen:

If DFF is present on mobile screen, it can also be personalized. Example - LPN DFF.
DFF can be in-line - DFF fields are displayed along with other fields on page. If DFF is not in-line, pressing Ctrl + F will open the DFF window.

Reference:
Note 469339.1 - Oracle WMS Personalization Framework
Note 1600812.1 - Mobile Supply Chain Applications (MSCA) Personalization - Webinar
Note 470011.1 - What WMS Patchset Is Required In Order To Personalize MWA Per Note 469339.1?
Note 961198.1 - Mobile Personalization White Paper

MSCA/MWA Framework - Custom Development and Extension - Part 1

MWA Responsibilities, Menu and Functions

The way we create responsibilities, menus and functions is similar to other oracle applications.

Responsibilities:

Responsibilities should have "Oracle Mobile Applications" selected in "Available From".

Menu:

Menu are normally created with menu type "Standard".

Function:

Function should be created with type "Mobile Applications".

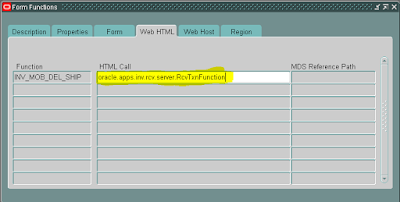

HTML Call of the function should point to java class full name for menu item bean (We'll discuss more on this in coming section.

Technical Overview of MSCA/MWA Framework

In technical overview of the MSCA/MWA Framework, we need to understand Mobile Application Beans (Mobile Application Screen UI Construction) and Event Listener Model (Event Handling like Page Enter, Field Exit, Button click etc):

Mobile Application Beans

Following are key Mobile Application Beans:

oracle.apps.mwa.beans.MWABean

public class MWABean extends java.lang.Object implements java.io.Serializable
Base class for all UI beans.
MenuItemBean, PageBean, FieldBean, FlexfieldBean all extend from this class.
Maintains a list of MWA event listeners (protected java.util.Vector m_listeners).

public void addListener(MWAListener Listener)
public void removeListener(MWAListener Listener)
public java.util.Vector getListeners()

We don't use this bean directly in our coding.

oracle.apps.mwa.beans.MenuItemBean

public class MenuItemBean extends MWABean
Connects FND Menu Structure to Mobile Application. FND Form function for the Mobile Application points to a MenuItemBean.
As per naming convention, MenuItemBean ends with suffix "Function".
It stores the key name of the first page of the mobile application (protected java.lang.String m_firstPageName).

public java.lang.String getFirstPageName()

public void setFirstPageName(java.lang.String FirstPageName)

Example - Following statement is typically written in the Constructor:

setFirstPageName("xxabc.oracle.apps.abc.xyz.inv.invtxn.server.MyFirstCustomPage");
FirstCustomPage is custom PageBean.

Other functions it provides are to set/get the menu confirmation message:

public void setMenuConfirmMessage(java.lang.String msg)

public java.lang.String getMenuConfirmMessage()

oracle.apps.mwa.beans.PageBean

public class PageBean extends MWABean
Base class for all user developed page level beans.
Contains the page prompt which is displayed to the end user as the title of the page (protected java.lang.String m_prompt)

public void setPrompt(java.lang.String Prompt)
public java.lang.String getPrompt()

Maintains list of field beans which are part of this page (protected java.util.Vector m_fieldBeans) and current field indicator (protected int m_curtField):

public void addFieldBean(FieldBean FB)
public void addFieldBean(int index, FieldBean FB)
public void removeFieldBean(FieldBean FB)
public void removeAllFieldBeans()
public int getCurrentFieldIndex()
public int getFieldIndex(java.lang.String key)
public FieldBean getCurrentFieldBean()
public java.util.Vector getFieldBeanList()
public void setFieldBeanList(java.util.Vector BeanList)

Contains Session for the page (protected Session m_session) Session Handling methods:

public Session getSession()
public void setSession(Session sessionObject)

Other key methods:

To return the full name of the pagebean: public java.lang.String getName()
To mark if a page bean is to be instantiated upon each visit during runtime: public boolean isMultipleInstance(), public void setMultipleInstance(boolean MultipleInstance)

Typically as first step, we declare the FieldBeans in pageBean class's declaration section, and generate getters and setters for the fieldbeans. In Constructor to add field beans, modify fieldbean properties, change the order of the fieldbeans, associate field Listener to field beans (Details on FieldListener will be covered later).

For code examples - please refer FieldBean.

oracle.apps.mwa.beans.FieldBean

public class FieldBean extends MWABean
Base class for all field level beans.
Important Subclasses - ButtonFieldBean, HeadingFieldBean, InputableFieldBean (With Subclasses - LOVFieldBean, MultiListFieldBean, TextFieldBean), ListFieldBean, MessageFieldBean.
Maintains name property of the field (protected java.lang.String m_name)

public java.lang.String getName()
public void setName(java.lang.String Name)

Maintains prompt property of the field (protected java.lang.String m_prompt)

public java.lang.String getPrompt()
public void setPrompt(java.lang.String Prompt)

Maintains hidden property of the field (protected boolean m_hidden)

public boolean isHidden()
public void setHidden(boolean Hidden)

Maintains type of field (protected short m_type):

default is INPUTTEXT.
public int getType()
Possible Values include:


public static short TEXT
public static short LOV
public static short MULTILIST
public static short LIST
public static short BUTTON
public static short CHECKBOX
public static short RADIO
public static short HEADING1
public static short HEADING2
public static short LINESEPARATOR
public static short SPACESEPARATOR
public static short MENUITEM
public static short RESPONSIBILITYITEM
public static short LOVRUNTIMEITEM
public static short MULTILISTRUNTIMEITEM
public static short DESCFLEX
public static short KEYFLEX
public static short SEGMENTLOV
public static short SEGMENTTEXT

oracle.apps.mwa.beans.FlexFieldBean

public class FlexfieldBean extends MWABean implements oracle.apps.fnd.flexj.event.FlexfieldListener
It represents the flexfield in the Mobile Applications
Constructor - public FlexfieldBean(oracle.apps.fnd.flexj.Flexfield flexfield, oracle.apps.mwa.container.Session session)
Maintains boolean variables and getters and setters for readonly, hidden and required (private boolean m_readonly, m_hidden, m_required):

public boolean isRequired()
public void setRequired(boolean requiredFlag)
public void setHidden(boolean hiddenFlag)
public void setReadonly(boolean readOnlyFlag)
public boolean isReadonly()

Important Flexfield related APIs:

```
public Flexfield getFlexfield()
```

protected boolean addSegmentBean(Segment Seg)

protected void removeSegmentBean(Segment Seg)

Following are three most frequently used beans on Mobile Application Pages:

oracle.apps.mwa.beans.TextFieldBean

public class TextFieldBean extends InputableFieldBean

Constructor: public TextFieldBean()
Frequently used properties and their getters and setters inherited from FieldBean:

name, prompt, hidden

Frequently used properties and their getters and setters inherited from InputableFieldBean:

editable (protected boolean m_editable)
required (protected boolean m_required)
display length (protected int m_length)
value (protected java.lang.String m_value)
value type (protected java.lang.String m_valueType)

Possible values are: S - String, N - Number, D - Date, C - Calculation, R - Range

Maintains password property (protected boolean m_password)

```
public boolean isPassword()
```

public void setIsPassword(boolean IsPassword)

Maintains navigation to next page property (protected java.lang.String m_nextPageName)

public java.lang.String getNextPageName()

public void setNextPageName(java.lang.String NextPageName)

oracle.apps.mwa.beans.LOVFieldBean

public class LOVFieldBean extends InputableFieldBean
Constructor: public LOVFieldBean()
Frequently used properties and their getters and setters inherited from FieldBean:

name, prompt, hidden

Frequently used properties and their getters and setters inherited from InputableFieldBean:

editable, required, display length (length), value, value type

Maintains navigation to next page property (protected java.lang.String m_nextPageName)

public java.lang.String getNextPageName()

public void setNextPageName(java.lang.String NextPageName)

Maintains LOV Statement (protected java.lang.String m_lovStatement)

This is mandatory to be set.
Store SQL query or PL/SQL procedure with a reference cursor output parameter.

public void setlovStatement(java.lang.String LovStatement)

public java.lang.String getlovStatement()

Maintains key names, prompt, types, rendered property of the subfields of the Lov page, (protected java.lang.String[] m_subfieldNames, protected java.lang.String[] m_subfieldPrompts, protected java.lang.String[] m_subfieldTypes, protected boolean[] m_subfieldDisplays ).

The size of these arrays should be same.

public java.lang.String[] getSubfieldNames()

public void setSubfieldNames(java.lang.String[] SubfieldNames)

public java.lang.String[] getSubfieldPrompts()

public void setSubfieldPrompts(java.lang.String[] SubfieldPrompts)

public java.lang.String[] getSubfieldTypes()

public void setSubfieldTypes(java.lang.String[] SubfieldTypes)

```
public boolean[] getSubfieldDisplays()
```

public void setSubfieldDisplays(boolean[] SubfieldDisplays)

Maintains key names of the input parameters and parameter types (protected java.lang.String[] m_inputParameters, protected java.lang.String[] m_inputParameterTypes)

public java.lang.String[] getInputParameterTypes()

public void setInputParameterTypes(java.lang.String[] InputParameterTypes)

public java.lang.String[] getInputParameters()

public void setInputParameters(java.lang.String[] InputParameters)

Maintains values returned from LOV or selectec values (protected java.util.Vector m_selectedValues)

public java.util.Vector getSelectedValues()

```
public boolean isPopulated()
```

Maintains lov validation required property (protected boolean m_validateFromLOV)

Specifies if user has to always go through LOV page - if false, value in the field is accepted without validation.
Default is True.

public void setValidateFromLOV(boolean validateFromLOV)

```
public boolean isValidateFromLOV()
```

oracle.apps.mwa.beans.ButtonFieldBean

public class ButtonFieldBean extends FieldBean
Constructor: public ButtonFieldBean
()
Frequently used properties and their getters and setters inherited from FieldBean:

name, hidden (behavior of prompt is different for buttons as it includes accelerator keys)

Maintains button prompt property with accelerator key (protected java.lang.String m_prompt):

public void setPrompt(java.lang.String s)

public void setPrompt(java.lang.String s)

If we call setPrompt("&Done"), getPrompt() will return "Done".

'D' will be the hot key for "Done" button

Maintains navigation to next page property (protected java.lang.String m_nextPageName)

public java.lang.String getNextPageName()

public void setNextPageName(java.lang.String NextPageName)

Maintains accelerator key enable/disable property (protected boolean m_enableAcceleratorKey)

public void setEnableAcceleratorKey(boolean b)

public boolean isAcceleratorKeyEnabled()

Please proceed to MSCA/MWA Framework - Custom Development and Extension - Part 2 to read more.
Previous Read: Oracle MSCA/MWA Framework - Introduction

Oracle MSCA/MWA Framework - Introduction

MSCA

Stands for Mobile Supply Chain Application.
MSCA is for staff in warehouse, shop floor, most of whom are always on the move.
MSCA trasactions are carried out from hand-held devices.
To efficiently operate and infuse visibility in the system - RFID (Radio Frequency Identification) readers are used by warehouse/shop floor staff to read barcodes and use them in transactions.
Items, Locators, Sub-Inventories etc are barcoded and these barcodes are not entered manually but scanned with the handheld devices while performing transactions thus providing efficiency, speed as well as accuracy.

MWA

Stands for Mobile Web Application.
MWA is telnet based application that runs on internet (WIFI and GPRS) based wireless devices.
Telnet client is configured on the handheld device, for testing it is used on desktop.
MWA Applications are based on Java.
MWA is part of WMS (Warehouse Management System).

MWA Architecture:

Fortunate enough to get a chance to closely observe and experience warehouse transactions using handheld devices. Typical work on MWA Applications:

Development of custom screens for handheld devices.
Extend the existing MWA screens.
Personalize existing MWA screens.

Technical Skills Required:

Java
PLSQL
XML

Softwares Required:

JDK to be installed in system.
Mobile Wireless Applications (MWA) J2ME Telnet GUI Client.

Navigation

Navigation on mobile device uses "Enter" key.
"Enter" key will fire fieldExited event.
Whenever we scan a barcode, barcode will populate the value and there is an associated "Enter" key for navigation to next field.

Key Mappings

Key mappings are visible on mobile help screen on pressing "F1" (Standard key for Help).

Following are standard key mappings:

Shortcut Key	Purpose
F1	Help
F2	Menu
F3	Back
F4	Forward
Ctrl K	Clear
Ctrl L	LOV
Ctrl M	Responsibility Menu
Ctrl B	Long Description of status message
Ctrl Z	Toggle between options in a list field
Ctrl A	Show Current Field on page
ESC	For Hot Keys
Ctrl Z	Toggle between options in a list field
Ctrl D	Page Up
Ctrl C	Page Down
Ctrl G	Generate (Generate Serial Number etc)
Ctrl S	Skip Task on Task Page
Ctrl X	About Page
Ctrl F	Open Flexfield Window

MWA Configuration

$INST_TOP/admin/install/mwa.cfg stores the MWA configuration.
Following are the key configuration variables in this file:

mwa.DbcFolder
mwa.DbcFile
mwa.logdir
mwa.LogLevel
mwa.SystemLog
mwa.EnableLogRotation
mwa.MaxLogFileSize
mwa.SubmenuChangeOrgResp

Refer to MSCA Implementation Guide> MWA Server Setup > MWA Configuration File for more details.
Key mappings can be modified for a particular device ($INST_TOP/admin/install/Device IP.ini) or all devices ($INST_TOP/admin/install/default_key.ini). (Refer to MSCA Implementation Guide> MWA Server Setup > Key Mappings).

Steps to Configure MWA Client:

MWA Client needs to confirmed
Search for "Mobile Wireless Applications (MWA) J2ME Telnet GUI Client" or "Latest MWA GUI Client" etc on oracle support. Latest patch that I found and tried was 12780257. Patch "Read me" file contains details on patch installation.
https://support.oracle.com/epmos/main/downloadattachmentprocessor?parent=DOCUMENT&sourceId=294670.1&attachid=294670.1:1&clickstream=yes

MWA Administrator

Standard MWA responsibility for MWA for Mirroring and Sending message to another mobile device for communication.

Mirroring Mobile Session

MWA Administrator > Telnet Session Monitor can be used to mirror an active session of another user.
Both users must be on the same MWA Server.
This can greatly help in debugging and supporting MWA Applications.

Send Message

MWA Administrator > Send Message can be used to send a brief message to another user.
Both users must be on the same MWA Server.
User will see the message on any key press.
After pressing OK, user can continue with their transaction.

Starting/Shutting MWA Server

Location of Scripts - cd $INST_TOP/admin/scripts
Start Command - mwactl.sh start [port number]

Ex. mwactl.sh start 6060

Shutdown Command - mwactl.sh-login xxx/yyy stop/stop_force [port number]

mwactl.sh -login cbaker/welcome stop 6060
mwactl.sh -login cbaker/welcome stop_force 6060

Hardware devices typically used:

Barcode Printer
Ribbon for barcode printing
Rugged/Semi-rugged mobile devices
lamination labels

Please proceed to MSCA/MWA Framework - Custom Development and Extension - Part 1 to read more on custmization in MSCA/MWA Framework.

Please proceed to MSCA/MWA Framework - Mobile Personalization to read more on Personalizing standard MSCA/MWA Screens.

Learn Oracle Applications With Me

Pages
